Components are chosen based on factors including working properties, environmental impact, function, manufacturing processes etc. It is important to choose a component fit for purpose.

Part ofDesign and TechnologyIn-depth technical principles

Drivers

Transistors

only use small currents when they operate, but many use much higher currents. An from an can be connected to the ‘base’ leg of a so that an output device that requires higher current can work.

Transistors act like , and the most common types are called . They have three legs:

The base leg acts as the control and needs around 0.6 volts (V) to switch ‘on’. Once an input of 0.6 volts has triggered the base leg, a much larger current can flow through the collector or emitter leg.

The standard electrical symbol for a transistor alongside a photograph of a transistor.
Figure caption,
An NPN bipolar transistor

The output pin from an integrated circuit (IC) will normally have a protective connected in between the output and the base leg of a transistor. This is to protect the base leg by controlling current flow.

The emitter leg connects to 0 volts (V), often called , and the collector connects to + volts (V) through the output device, which will ‘turn on’ when 0.6 volts (V) flows into the base leg of the transistor.

Transistors are easily damaged so it is important not to mix up the three legs. To help identify the legs, some transistors have a dot near the collector, and/or a tab near the emitter. Each type of transistor is identified by a code printed on the side.

A single cannot have both and current. A is a special arrangement of bipolar transistors that combines a high gain transistor with a high-current transistor. The combined transistors allow both a higher gain and a larger amount of current to flow than would be possible with a single transistor.

Two bipolar transistor symbols, one a high-gain transistor and the other a high-current transistor, in a circuit diagram creating a Darlington pair.
Figure caption,
Darlington pair

Thyristors

A is a component that can be used in , such as simple alarms. Whereas a transistor will ‘turn on or off’ depending if 0.6 volts (V) flows into the base leg, a thyristor will turn on when around 2 volts (V) flows into the . It will then remain ‘latched’ on until the thyristor is reset by across the and , as shown by SW1 in the diagram below:

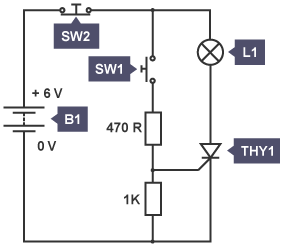

A schematic of a simple circuit diagram showing how different components, including a battery, two switches, a lamp and a thyristor, are connected together.
