What is photosynthesis and how does it affect plants? (CCEA)

Photosynthesis is an endothermic process that takes place in the chloroplasts (found in leaf cells).

Chloroplasts have a green pigment called chlorophyll, which absorbs light energy that reacts carbon dioxide and water together producing glucose (chemical energy) and oxygen.

Photosynthesis word equation

carbon dioxide + water -> glucose + oxygen

Photosynthesis balanced chemical equation

6CO2 + 6H2O -> C6H12O6 + 6O2

The plant uses the glucose it produces for:

Respiration – to provide energy.

Storage – glucose is converted into starch and oils.

Leaves are adapted for:

• light absorption

• gas exchange

Adaptations to maximise light absorption:

• Waxy cuticle – a protective layer that is transparent to allow light to enter the leaf. It is waterproof to reduce water loss by evaporation.

• Epidermis – physical defence layer that does not contain chloroplasts making it transparent so allows light into the leaf.

• Palisade mesophyll layer – regularly shaped allowing many to pack together closely at the top of the leaf with many chloroplasts to increase photosynthesis.

• Leaves are thin – ensures all cells receive light.

• Leaves have a large surface area.

• Each leaf is not shaded by another.

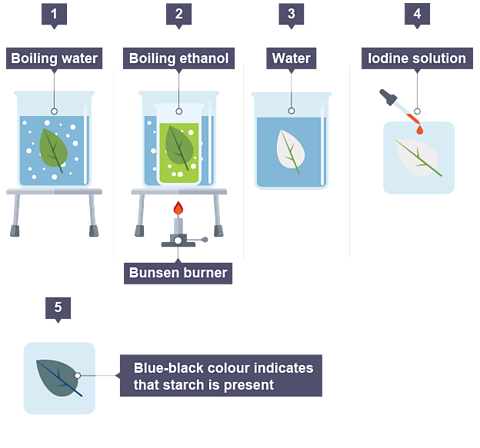

The starch test:

1. Boil the leaf in water – this kills it, stopping any further chemical reactions.
2. Boil the leaf in ethanol – removes the chlorophyll making the leaf turn white.
3. Turn off Bunsen burner – safely as ethanol is flammable.
4. Dip the leaf in water – this softens it.
5. Spread the leaf onto a white tile and add iodine to test for the presence of starch.

Results:

Safety:

As well as wearing goggles throughout the experiment, ensure that the ethanol is not exposed to a naked flame during step 2, as it is highly flammable.

Procedure:

• destarch a plant
• cover part of a leaf with lightproof paper/foil
• place the plant in bright light for several hours
• add iodine to test the leaf for starch using the 4-step starch test

Results

Only the areas that have been exposed to light will photosynthesise and therefore test positive for starch, showing that light is necessary for photosynthesis.

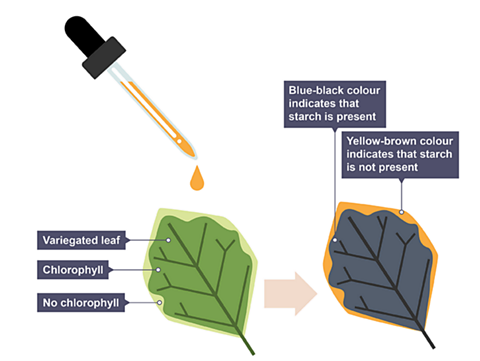

Investigating the need for chlorophyll in photosynthesis

Procedure:

• destarch a variegated plant – partly green and partly white
• place the plant in bright light for several hours
• test the leaf for starch using the 4-step starch test

Procedure:

• destarch a plant
• expose one leaf to sodium hydroxide, which will absorb carbon dioxide from the surrounding air
• expose another leaf to water (control experiment for comparison), which will not absorb carbon dioxide from the surrounding air
• place the plant in bright light for several hours
• add iodine to test both leaves for starch

Results:

Conclusion:

• leaf A, which receives CO₂, can photosynthesise and produce starch
• leaf B has no starch as it can't photosynthesise because sodium hydroxide absorbs its CO₂
• this demonstrates that CO₂ is essential for photosynthesis

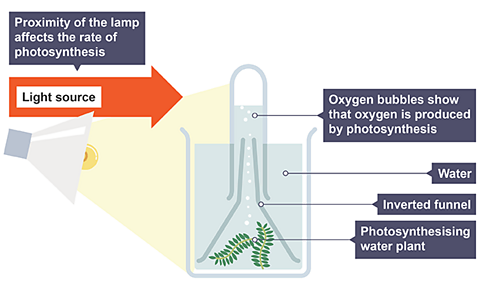

Procedure:

• place pondweed into a beaker of water
• add sodium hydrogen carbonate (gives carbon dioxide)
• cover with funnel and test-tube
• place light at set distance from the plant
• record the number of bubbles produced in one minute

Results:

Conclusion:

The closer the light, the greater the rate of photosynthesis as the number of oxygen bubbles increases up to 40cm where the rate is limited by temperature or carbon dioxide concentration.

The factors that affect the rate of photosynthesis are:

• temperature
• light intensity
• carbon dioxide concentration

For photosynthesis to occur at its maximum rate, all factors must be at optimal levels. If any factor is in short supply, the rate of photosynthesis will be limited.

These factors are then limiting factors and the rate of photosynthesis will be determined by the factor that is in shortest supply.

Temperature

Temperature affects all reactions because an increase in temperature causes the molecules to gain kinetic energy and therefore increases chance of collisions.

At low temperatures, the rate of photosynthesis is limited by the number of collisions between enzymes and substrates. At high temperatures, enzymes are denatured.

Light

As light intensity increases, the rate of photosynthesis increases until a certain point where the graph levels off.

At lower light intensities, light is the limiting factor because an increase in light causes an increase in photosynthesis.

At higher light intensities (plateau of graph), further increasing the light intensity does not increase the rate of photosynthesis meaning that another factor (either temperature or carbon dioxide concentrations) is limiting the rate of photosynthesis.

On a hot day, photosynthesis happens at a higher rate when compared to the cooler day, showing that temperature has an effect and is the limiting factor on a cooler day.

Carbon dioxide

As carbon dioxide concentrations increase, so too does the rate of photosynthesis until a certain point where the graph levels off.

At lower carbon dioxide concentrations carbon dioxide is the limiting factor because an increase in carbon dioxide causes an increase in photosynthesis.

At higher carbon dioxide concentrations (plateau of graph), further increasing the carbon dioxide concentration does not increase the rate of photosynthesis meaning another factor (either temperature or light intensity) is limiting the rate of photosynthesis.

An increased level of carbon dioxide leads to a higher rate of photosynthesis when compared to the lower carbon dioxide level.

A hydrogencarbonate indicator can detect increases and decreases in carbon dioxide concentration by changing colour:

Photosynthesis only happens in the light. Respiration happens all the time.

In bright light

Both photosynthesis and respiration are occurring, but as the rate of photosynthesis is higher than the rate of respiration, the plant takes carbon dioxide in.

The removal of carbon dioxide from air would change the indicator from red to purple.

In low light

When light intensity is low, the rates of photosynthesis and respiration are equal. This is known as the compensation point and there is no net gas exchange.

No net gas exchange would cause the hydrogencarbonate to remain red because no change in carbon dioxide concentration will be detected.

In the dark

Only respiration is occurring as there is no light for photosynthesis, therefore the plant gives out carbon dioxide.

The release of carbon dioxide from the leaf into the hydrogencarbonate indicator changes the indicator from red to yellow.

Play this game to see how a seed or a plant is affected by changing how much water, sunlight and carbon dioxide it gets.
