»	Environmental Hazards Floods Cause Impact Prediction Action Volcanoes Cause Impact Prediction Action Revision Summary
	Contact Us

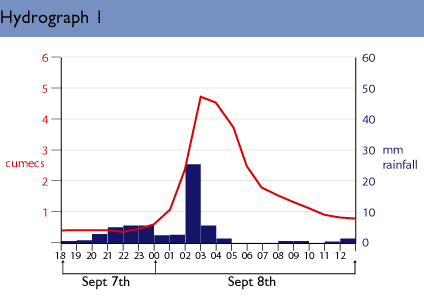

Prediction Exercise Decide which of the four graphs relates to the data for the Mill Burn. View each of the graphs and compare them with the information in the table. Select the correct graph and submit your answer. Time in Hours Rainfall in mm Cumecs in cubic metres per second 7 Sept 2002 18 0.6 0.1 19 0.8 0.1 20 2.8 0.1 21 5.0 0.2 22 5.6 0.3 23 5.6 0.5 8 Sept 2002 00 2.4 0.6 01 2.6 1.1 02 25.4 2.4 03 5.6 5.4 04 1.4 4.5 05 0.0 3.7 06 0.0 2.5 07 0.0 1.8 08 0.6 1.5 09 0.6 1.3 10 0.0 1.1 11 0.4 0.9 12 1.4 0.8
