Sample exam questions - electricity - AQAOne to two mark questions

Understanding how to approach exam questions helps boost exam performance. Questions will include multiple choice, descriptions and explanations, using mathematical skills and extended writing.

Part ofPhysics (Single Science)Electricity

One to two mark questions

One to two mark questions will start with command words such as 'describe' or 'explain'. Some command words are easy to understand such as:

  • 'calculate' or 'determine' for maths questions
  • 'complete' to fill in a gap in a table or graph
  • 'define' to give the meaning of an important word
  • 'suggest' where you use your knowledge in an unfamiliar situation

The command words 'describe' and 'explain' can be confusing. If you are asked to describe a graph, you will be expected to write about its overall shape, whether it is linear or curved, the slope of gradients, etc. If you are asked to explain why a pattern or trend is seen in a graph, you will be expected to use your science knowledge, not just say what you see (which is a description), eg 'The graph shows a steep linear increase for the first three hours because…'.

‘Explain how’ and ‘why’ questions often have the word ‘because’ in their answer. 'Describe' questions don’t.

The number of marks per question part is given in this form ‘[2 marks]’. It is essential that you give two different answers if a question is worth two marks. Sometimes you can gain a second mark by giving the units in a calculation or stating specific data points, eg the speed of the object decreased by 8 m/s.

This page contains AQA material which is reproduced by permission of AQA.

Learn about command words with Dr Alex Lathbridge

Understanding the different command words in your science GCSE exams.

Sample question 1 - Foundation

Question

Individual circuit symbols in one sheet including battery, variable resistor, lamp, voltmeter and ammeter.

A student wants to investigate how the current through a filament lamp affects its resistance.

Use the circuit symbols above to draw a circuit diagram that she could use. [2 marks]

Sample question 2 - Foundation

Question

Describe how the resistance of a filament lamp changes as the current through it increases. [1 mark]

Sample question 3 - Higher

Question

A slide is made of plastic.

A child becomes electrically charged when he goes down the slide.

Explain why. [2 marks]

Sample question 4 - Higher

Question

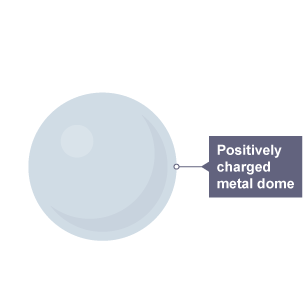

The image below shows a plan view of the positively charged metal dome of a Van de Graaff generator.

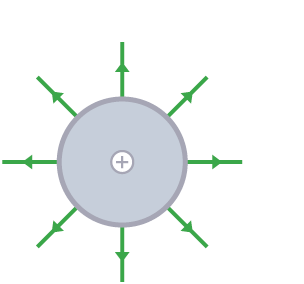

Draw the electric field pattern around the metal dome when it is isolated from its surroundings.

Use arrows to show the direction of the electric field. [2 marks]

A positively charged metal dome.
