Venn diagrams that do not overlap
Sometimes the sets do not have any common elements.
Example

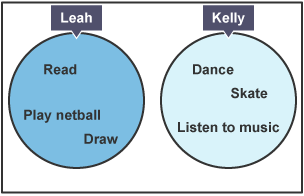

Leah and Kelly are sisters who do not have any interests in common. Leah likes to read, draw and play netball whereas Kelly prefers to listen to music, dance and skate. If we were to draw this as a Venn diagram, we would need to draw separate circles.
Question
List the items in Set A and Set B.
Set A = {12, 14, 15, 16, 17, 18, 20, 22}
Set B = {16, 17, 20, 21, 22, 23, 24, 25, 28}
Question

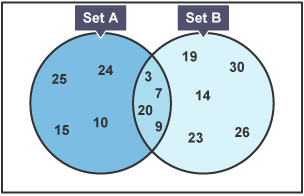

List the Intersection and union of the following Venn diagram.
Intersection – \({A}\cap{B}\) = {3, 7, 9, 20}
Union – \({A}\cup{B}\) = {3, 7, 9, 10, 14, 15, 19, 20, 23, 24, 25, 26, 30}
