Sample exam questions - magnetism and electromagnetism - AQAOne and two mark questions

Understanding how to approach exam questions helps boost exam performance. Questions will include multiple choice, descriptions and explanations, using mathematical skills and extended writing.

Part ofPhysics (Single Science)Magnetism and electromagnetism

One and two mark questions

One to two mark questions will start with command words such as ‘Describe...’ or ‘Explain...’. Some command words are easy to understand such as:

  • ‘Calculate...’ or ‘Determine...’ for maths questions
  • ‘Complete...’ to fill in a gap in a table or graph
  • ‘Define...’ to give the meaning of an important word
  • ‘Suggest...’ where you use your knowledge in an unfamiliar situation

The command words ‘Describe...’ and ‘Explain...’ can be confusing. If you are asked to describe a graph, you will be expected to write about its overall shape, whether it is linear or curved, the slope of gradients etc. If you are asked to explain why a pattern or trend is seen in a graph, you will be expected to use your science knowledge, not just say what you see (which is a description), eg The graph shows a steep linear increase for the first three hours because....

Explain how and why questions often have the word ‘because’ in their answer. Describe questions don’t.

The number of marks per question part is given in this form [2 marks]. It is essential that you give two different answers if a question is worth two marks. Sometimes you can gain a second mark by giving the units in a calculation or stating specific data points, eg the speed of the object decreased by 8m/s.

This page contains AQA material which is reproduced by permission of AQA.

Learn about command words with Dr Alex Lathbridge

Understanding the different command words in your science GCSE exams.

Sample question 1 - Foundation

Question

Each of the three metal bars in Figure 1 is either a bar magnet or a piece of un-magnetised iron.

The forces that act between the bars when different ends are placed close together are shown by the arrows.

Figure 1

Six metal bars in pairs, two pairs attract and one repels.

Which one of the metal bars is a piece of un-magnetised iron? [1 mark]

Tick one box.

ABar 1
BBar 2
CBar 3
A
Bar 1
B
Bar 2
C
Bar 3

Give the reason for your answer.

Sample question 2 - Foundation

Question

A teacher used the equipment shown in the image below to demonstrate the motor effect.

Copper rod attached to a circuit containing an open switch, battery and a variable resistor; suspended in the middle of a horseshoe magnet.

Increasing the current can increase the force acting on the copper rod.

Give one other way in which the size of the force acting on the copper rod could be increased. [1 mark]

Sample question 3 - Higher

Question

An electromagnet is made up of a solenoid.

Figure 2 shows a solenoid

Figure 2

Solenoid coil, with labels showing where current goes in and where current goes out.

Draw the magnetic field of the solenoid on Figure 2. [2 marks]

Sample question 4 - Higher

Question

A student makes three simple transformers, J, K and L.

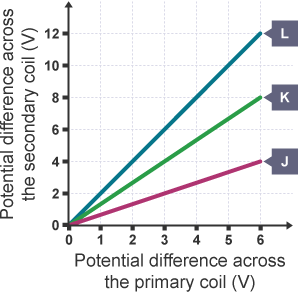

Figure 3 shows how the potential difference across the secondary coil of each transformer varies as the potential difference across the primary coil of each transformer is changed.

Figure 3

Graph plotting potential difference across the primary coil against potential difference across the secondary coil. Three lines at various gradients.

How can you tell that transformer J is a step-down transformer? [1 mark]
