Conventional power stations
About three-quarters of the electricity which is generated in the UK comes from power stations that are fuelled by fossil fuels.

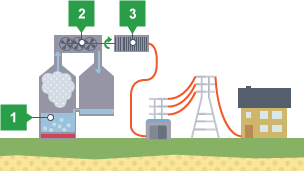

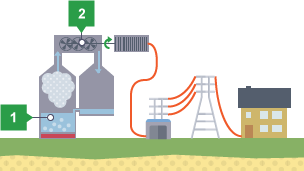

Image caption, Power station

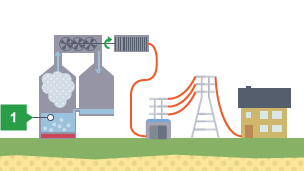

1. The fuel is burned to boil water to make steam
1 of 4
End of image gallery
Power stations generate significant heat losses to the environment. This is an energy transfer diagram for the generation of electricity from a fossil fuel such as coal.
Energy transfer for the generation of electricity from a fossil fuel
