Pyramids and cones - Higher tier only
A pyramid is a 3D shape with a flat base, and triangular edges that meet at a point. The base of the pyramid can be any polygon.
\(\text{Volume of a pyramid} ~=~ \frac{1}{3} \times \text{area of base} \times \text{height}\)
This formula is not given in the exam. You will need to learn it!
Question

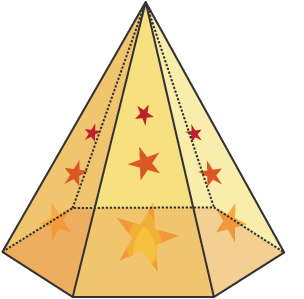

Calculate the volume of this candle holder, when the area of the base is 20 cm2 and the height is 15 cm.
Volume = \(\frac{1}{3}\) × 20 × 15 = \(\frac{1}{3}\) × 300 = 100 cm3
Question
Calculate the volume of this miniature model of an Egyptian pyramid.
Volume = \(\frac{1}{3}\) × area of base × height
Area of base = 5 mm × 6 mm = 30 mm2
Volume = \(\frac{1}{3}\) × 30 mm2 × 7.5 mm = 75 mm3
Question
A glass sculpture in the shape of a square based pyramid is to be made. The apex will be directly above the centre of the base. Calculate the surface area of the glass.
1. Calculate the area of the base
\(\text{Area of a square} ~=~ \text{length} \times \text{width}\)
Area of a square = 3 m × 3 m = 9 m2
2. Calculate the area of the triangular side
\(\text{Area of a triangle} ~=~ \frac {1} {2} \times \text{base} \times \text{height}\)
Area of a triangle = ½ × 3 × 5 = 7.5 m2
Total surface area = square base + 4 triangular sides
Total surface area = 9 + (4 × 7.5) = 9 + 30 = 39 m2
A cone is the general name of a shape that has a flat base of any shape tapering up to a point. The base can be any shape: if it is a polygon the shape is called a pyramid. The cones you will see in exams will be circular based.
The formulas for the volume and surface area of a cone will be given to you in the exam.
\(\text{Volume of a cone} ~=~ \frac {1}{3} ~ \pi \times \text{r}^{2} \times \text{h}\)
\(\text{Curved surface area of a cone} ~=~ \pi \times \text{r}\times \text{l}\)
Where \(\text{l}\) is the length of the slanted or sloping side. We can find this using Pythagoras’ theorem.
Don't forget for the total surface area, you will need to add the area of the circular base:
\(\text{Area of a circle} ~=~ \pi \times {r}^{2}\)
Question
Find the volume and surface area of a party hat with diameter 12 cm and height 15 cm.
1. Diameter = 12 cm, so the radius must be 12 ÷ 2 = 6 cm
2. \(\text{Volume of a cone} ~=~ \frac {1}{3} ~ \pi \times \text{r}^{2} \times \text{h}\)
Volume = \(\frac {1}{3} ~ \pi \) × 62 × 15 = 565.4866776 cm3
3. \(\text{Curved surface area of a cone} ~=~ \pi \times \text{r}\times \text{l}\)
Curved area = \(\pi \times \text{6} \times \text{l}\)
Using Pythagoras’ Theorem:
\(\text{l}^{2} ~=~ \text{r}^{2} ~+~ \text{h}^{2}\)
\(\text{l}^{2}\) = 6 2 + 15 2 = 261 cm
\(\text{l}~=~\sqrt{261} ~=~ \text{16.15549442 cm}\) (don’t round this value until the end of the calculation)
Curved area = \(\pi \times \text{6} \times \text{16.15549442}\) = 304.5238955 cm2
4. Area of the base = \(\pi \times \text{r}^{2}\) = \(\pi\) x 62 = 113.0973355 cm2
5. Total surface area = 304.5238955 + 113.0973355 = 417.621231 cm2
Volume = 565.49 cm3 (to two decimal places)
Total surface area = 417.62 cm2 (to two decimal places)
