Enlargement

Enlarging a shape changes its size.

Enlargement of triangle (XYZ)

All the sides of the triangle X'Y'Z' are twice as long as the sides of the original triangle XYZ. The triangle XYZ has been enlarged by a of 2.

Enlargement is an example of a transformation. A transformation is a way of changing the size or position of a shape.

To enlarge a shape, a centre of enlargement is required. When a shape is enlarged from a centre of enlargement, the distances from the centre to each point are multiplied by the scale factor.

The lengths in triangle A'B'C' are three times as long as triangle ABC. The distance from O to triangle A'B'C' is three times the distance from O to ABC.

Enlargement of triangle (ABC) to create triangle (A'B'C')

The triangle ABC has been enlarged by a scale factor of 3 about the centre of enlargement O.

Positive enlargements

A positive scale factor increases the size of a shape.

Example

Skip image gallery

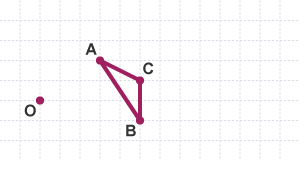

  1. Point O and triangle (ABC)

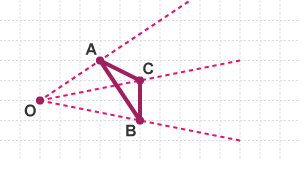

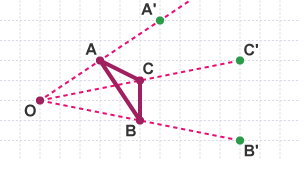

    Enlarge the triangle ABC by a scale factor of 2 about the centre of enlargement O

Alternatively, the distances OA, OB and OC can be shown as vectors. OA = \(\begin{pmatrix} 3 \\ 2 \end{pmatrix}\) so under a scale factor of 2 OA' = \(\begin{pmatrix} 6 \\ 4 \end{pmatrix}\).

The centre of enlargement may be outside an object, or it may be inside a shape, on an edge or at a corner.

The image may overlap the shape or one may be inside the other.

Question

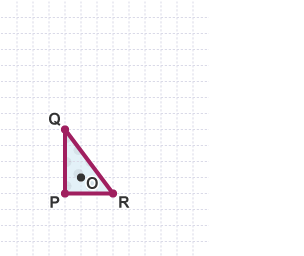

Enlarge the triangle PQR by a scale factor of 3 about the centre of enlargement O.

Triangle (PQR) with point O at it's centre

Question

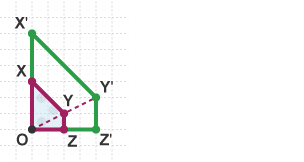

What scale factor has been used to enlarge the shape OXYZ to OX'Y'Z'?

Shape (OXYZ) enlarged
